  ITEM DETAILS

Item Name: SURECOM REPEATER 48-T1 CABLE FOR TYT WACCOM MOBILE TH-9000 TH-9000D
USD 6.00

Item Code: 48-50-T1
 Ask a question about this

 Add my watch 2

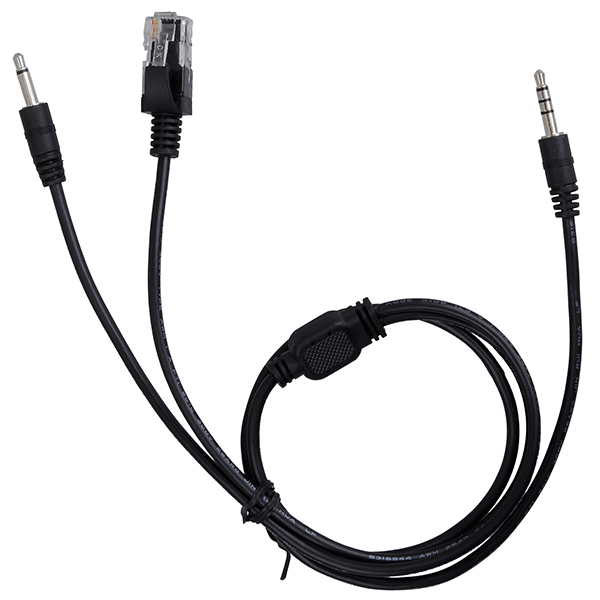

SURECOM REPEATER 48-T1 CABLE FOR TYT WACCOM MOBILE TH-9000 TH-9000D

  Description


Parts No.50-48-T1

REPEATER CABLE FOR TYT WACCOM MOBILE

3.5mm x17mm 4 pole Plug  3.5mm x15mm 2 pole Plug   8Pin Mic Plug to Radio (PIN)
Connect :
SR-112,SR-628,SR-328,SR-629

Connect :
Radio S.P OUT


1 2 3 4 5 6 7 8
GND GND GND     N/A N/A N/A N/A N/A
Audio in (for Radio Speaker out) Speaker Out       N/A N/A N/A N/A N/A
P.T.T. ON/OFF      PTT   N/A N/A N/A N/A N/A
Audio out ( audio level  for Mic )       Mic in N/A N/A N/A N/A N/A

Total Length : 80CM
Repeater connector Plug : 3.5mm x 17mm
Mobile Radio Speaker out : 3.5mm x 15mm
Radio Mic Plug pin : 8pin



Fit For Model:
TYT :
 TH-9000,TH-9000D

WACCOM :  WM-9000,WM-9000D


PACKAGE CONTAIN
1x REPEATER Cable FOR TYT WACCOM MOBILE









ENGLISH MANUAL
409shop Radio manual 409shop Radio manual 409shop Radio manual 409shop Radio manual

repeater-cable-k


SURECOM Repeater controller system handheld  Cable

Parts No.46-K

repeater-cable-k

  • Length : 50CM
  • Repeater connector Plug : 3.5mm x 17mm
  • FIT MODEL : SR-112,SR-628,SR-328,SR-629

Compatible Radio Models:

Repeater connector Plug: 2pin 2.5mm+ 3.5mm
Applicable radio :

  • Baofeng
  • Kenwood
  • Puxing
  • Surecom
  • Wouxun
  • QUANSHENG
SR-112 SR-328 SR-628 SR-629
repeater-cable-m repeater-cable-m repeater-cable-m repeater-cable-m




Parts No.46-M

repeater-cable-m

  • Length : 50CM
  • Repeater connector Plug : 3.5mm x 17mm
  • FIT MODEL : SR-112,SR-628,SR-328,SR-629

Compatible Radio Models:

MOTOROLA:CP88, CP100, CP150, CP200, CT150, CT250,
CT450, CT450LS , ECP100, GP68, GP88S, GP308, GP350, GP2000,
GP3688, GP3188, GTI, GTX, LTS2000, P040, P080, P110, P200, P1225, P1225LS, PR400, PRO1150,PRO2150, PRO3150, PMR446, SP10, SP21, VL50, VL130,

Feidaxin:FD-150A,  FD-160A, FD-450A, FD-460A

HYT: TC300 ,TC-446S TC-500, TC-518, TC-600, TC-610, TC-618 ,TC-620, TC-700, TC-700ExPLUS,TC-900, TC-1600,TC-2110 , HYT850, HYT2100,TC-508 TC-505

PUXING:PX-508U , PX-999

KIRISUN:PT578U , S760U , S765U , S780U , S785U

YAESU : FT-4XR , FT-25R,FT-65R



SR-112 SR-328 SR-628 SR-629
repeater-cable-m repeater-cable-m repeater-cable-m repeater-cable-m

Parts No.46-MT

repeater-cable-mt

  • Length : 50CM
  • Repeater connector Plug : 3.5mm x 17mm
  • FIT MODEL : SR-112,SR-628,SR-328,SR-629

Compatible Radio Models:

Motorola MOTOTLKR T5, Talkabout 270, 280, 289,FR50, FR60, FV200, FV300, FV500, FV700, FV750,FV800, T4500, T4800, T4900, T5000, T5100, T5146,
T5200, T5300, T5320,T5400, T5410, T5412, T5420,T5422, T5432, T5500, T5512, T5522, T5532,T5550, T5600


MYT MYTQ2V , MYTQ2U


RONSON RT-88

TYT TH-2R , TH-UV3R

AMYTEL AW1080T, AW1010T

SR-112 SR-328 SR-628 SR-629
repeater-cable-m repeater-cable-m repeater-cable-m repeater-cable-m

Parts No.46-S2/46-S

repeater-cable-s2

  • Length : 50CM
  • Repeater connector Plug : 3.5mm x 17mm
  • FIT MODEL : SR-112,SR-628,SR-328,SR-629

Compatible Radio Models:

 ICOM :IC-T7H ,IC-W32A,IC-F3,IC- F3S,IC- F4, IC-F4S,IC- F4TR,
IC-F10, IC-H2,IC- H6,IC- J12, IC-M5, IC-U12, IC-U16, IC-4008, IC-4088A

Maxon SP14, SP130, SP120, SP130, SPI140, SP300,
SP310, SP320, SP330, SP340, SL25, SL55, SL55+, SL100K
Midland -All 2-Pin 75-785, 75440, GTX-200, GTX-250, GTX-300,GTX-325, GTX-400, GTX-444, GTX-450,G-225, G-227, G-300, GXT500VP




SR-112 SR-328 SR-628 SR-629
repeater-cable-m repeater-cable-m repeater-cable-m repeater-cable-m

Parts No.46-Y

repeater-cable-y

  • Length : 50CM
  • Repeater connector Plug : 3.5mm x 17mm
  • FIT MODEL : SR-112,SR-628,SR-328,SR-629

Compatible Radio Models:

  • YAESU FT-50,FT-60R,VXF-1,VX-1R, VX-2R. VX-3R, VX-5R,VX-8GR ,VX-10,  VX-110,VX-131, VX-150 ,VX-300,  VX-410, VX-420,
    Vertex Standard VX-130,VX160, VX-168,VX180, VX-210, VX-210A,VX-400 ,VX-420, VX-427 ,VX-231,VX-230,VX351,VX350
    SCONOV TM-800 , TM-810
    Motorola  5500
    HUITONG HT222 , HT333
    Nanfone NF-6600 , NF-369
  • SR-112 SR-328 SR-628 SR-629
    repeater-cable-m repeater-cable-m repeater-cable-m repeater-cable-m

Parts No.46-Y7

repeater-cable-y7

  • Length : 50CM
  • Repeater connector Plug : 3.5mm x 17mm
  • FIT MODEL : SR-112,SR-628,SR-328,SR-629

Compatible Radio Models:

  • Compatible model:
    YAESU FT-270 ,FT-277 , HX-471 ,VX-6R/E , VX-7R /E , VX-120 ,
    VX-127 ,VX-170 , VX-177 ....
  • SR-112 SR-328 SR-628 SR-629
    repeater-cable-m repeater-cable-m repeater-cable-m repeater-cable-m

Parts No.46-C

repeater-cable-c

  • Length : 50CM
  • Repeater connector Plug : 3.5mm x 17mm
  • FIT MODEL : SR-112,SR-628,SR-328,SR-629



Parts No.46-D

repeater-cable-c

  • Length : 50CM
  • Repeater connector Plug : 3.5mm x 17mm
  • FIT MODEL : SR-112,SR-628,SR-328,SR-629





SURECOM Repeater controller Mobile Cable


Parts No. 48-+50K1

48-50-k1_2_300

KENWOOD TK-271 TK-768
Fit 8pin:TS-480,KMC-9C,KMC-30,KMC-32, KMC-35,KMC-36,TM-251-255-261-271-271E-451-455-461,-641-642708-732-733-741-742-941-942( 8 Pin modular Plug )TMG-707 TMD-700 TMD700A
TMV-71A.TMV-71E-V7A.TK-90-7108HM-7108M,7160E-7160HM-7160M-7162E,7180E-7189E,8108
HM-8108,M-8160E-8160,M-8162E,8180E-8189,TK90 ( see KMC-30 /32 /35 above )



Cable Detail:
Plug to Radio 8Pin
Plug to Mobile Audio out : 3.5mm x15mm mono.
Plug to Surecom Repeater in : 3.5mm x17mm 4 polo



SR-112 SR-328 SR-628 SR-629
repeater-cable-m repeater-cable-m repeater-cable-m repeater-cable-m

SURECOM repeater

8 pin Model
SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater
    SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater

Cable Detail:
Plug to Radio 6 Pin
Plug to Mobile Audio out : 3.5mm x15mm mono.
Plug to Surecom Repeater in : 3.5mm x17mm 4 polo



6 Pin Model

  SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater
    SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater



Part No. 48-+50Y1

48-50-k1_2_300



YAESU FT-8900,FT-7800,FT-2600,FT-1500M,FTM-350AR
FT-1802E,FT-2800,FT-100,FT-90,FT-8100,MH-42,MH-6A6J,MH-48



BAOJIE : BJ9900


TYT :TH-7800,TH-9800

Cable Detail:
Plug to Radio 6 pin

Plug to Mobile Audio out : 3.5mm x15mm mono.
Plug to Surecom Repeater in : 3.5mm x17mm 4 polo

SURECOM repeater

SURECOM repeater  SURECOM repeater  SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater
                 SURECOM repeater  SURECOM repeater SURECOM repeater





Part No. 48-+50T1

48-50-k1_2_300


TYT  TH9000 , TH9000D

Cable Detail:
Plug to Radio 8 pin

Plug to Mobile Audio out : 3.5mm x15mm mono.
Plug to Surecom Repeater in : 3.5mm x17mm 4 polo

SURECOM repeater

SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater
SURECOM repeater SURECOM repeater  SURECOM repeater





Part No. 48-+50B1

 48-50-k1_2_300

BAOFENG :BF9500

Cable Detail:
Plug to Radio 8 pin

Plug to Mobile Audio out : 3.5mm x15mm mono.
Plug to Surecom Repeater in : 3.5mm x17mm 4 polo

SURECOM repeater

SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater
SURECOM repeater   SURECOM repeater     SURECOM repeater



Part No. 48-+50Q1

48-50-k1_2_300

SURECOM :S-KT-980PLUS ,S-KT-980PLUS

QYT: KT-980 ,KT-980PLUS


Cable Detail:
Plug to Radio 8 pin

Plug to Mobile Audio out : 3.5mm x15mm mono.
Plug to Surecom Repeater in : 3.5mm x17mm 4 polo

SURECOM repeater

SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater
    SURECOM repeater SURECOM repeater   SURECOM repeater



Part No. 48-+50W1

48-50-k1_2_300

WOUXUN KG-920R

Cable Detail:
Plug to Radio 8 pin

Plug to Mobile Audio out : 3.5mm x15mm mono.
Plug to Surecom Repeater in : 3.5mm x17mm 4 polo

SURECOM repeater

SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater
SURECOM repeater SURECOM repeater        SURECOM repeater



 Parts No.48-+50S1

48-50-k1_2_300

ICOM :HM-113 HM-103 : IC-2200
 IC703 IC706MK1 IC706MK2 IC706MK3 IC2000 IC2000H
MH-151:IC-208,IC2100H,IC2200H,IC2725E IC2820,HM-133 IC-7000
HM-98: IC-2800   SM-25 SM-100/T: F320 F420 F1020 F2020,
F121,F221,F521, F620, F621/TR, F1721D, F182D, F272D
F282D FR3000 FR4000 FR5000 FR5100 FR6100.
ALINCO DR140-DR605

Cable Detail:
Plug to Radio 8 pin

Plug to Mobile Audio out : 3.5mm x15mm mono.
Plug to Surecom Repeater in : 3.5mm x17mm 4 polo

SURECOM repeater

SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater
  SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater



 Parts No.46-GM

repeater-cable-y7

Parts No.46-GM

  • Length : 50CM
  • Repeater connector Plug : 3.5mm x 17mm
  • FIT MODEL : SR-112,SR-628,SR-328,SR-629

Compatible Radio Models:


Repeater connector Plug: 16pin
Applicable radio :

  • CM300, CM200 CM series, (must use 2 CM series models.)
  • CDM750, CDM1250, CDM1550, (CDM series plug into the center 16 pin of the 20 pin jack)
  • PM400
  • GM SERIES
  • GM300 Series
  • M Series
  • Maxtrac Series
  • Radius Series
  • M1225
  • GM380, GM950, GM340, GM360, GM3188
  • SM50, SM120
  • other Motorola radio that has 16 or 20 pin accessory connector at the back
  • for 20 pin connector plug into middle 16 pin of the 20 pin jack







48-50-k1_2_300

YAESU MH-25A8J,MH-67A8J,MD-11A8J,MH-59A8J,
MH-61A8J,MH-68A8J,FT897,FT857,FT817,FT900,
FT-450,MD-200,MH-31A8J
VERTEX STANDARD MH-25A8J / MD-11A8J
VX-2000 VX-2500 VX-3000 ,
VX-3200 ,VX-4100 VX-4100E VX-4200 VX-4200E,
VXR-1000 VXR-7000

Cable Detail:
Plug to Radio 8 pin

Plug to Mobile Audio out : 3.5mm x15mm mono.
Plug to Surecom Repeater in : 3.5mm x17mm 4 polo

SURECOM repeater

SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater
    SURECOM repeater SURECOM repeater SURECOM repeater



48-50-k1_2_300

 YAESU MH-26G8J,MH-27G8J,FT-2400H,FT-2500M

Cable Detail:
Plug to Radio 8 pin

Plug to Mobile Audio out : 3.5mm x15mm mono.
Plug to Surecom Repeater in : 3.5mm x17mm 4 polo

SURECOM repeater

SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater
    SURECOM repeater SURECOM repeater SURECOM repeater




48-50-k1_2_300

ANYTONE AT-5189

Cable Detail:
Plug to Radio 8 pin

Plug to Mobile Audio out : 3.5mm x15mm mono.
Plug to Surecom Repeater in : 3.5mm x17mm 4 polo

SURECOM repeater

SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater
SURECOM repeater SURECOM repeater SURECOM repeater SURECOM repeater











How to set function mode from SR-112/SR-328/SR-628/SR-629

FUNCTION  /  MODEL SR-112 SR-328 SR-628 SR-629
Repeat ## 71 No Function
  Press Red switch 2 sec.   by Switch
Mode select     No Function YES
   A- RX    control to B-TX       mode 1  No Function DTMF PUSH PTT "##612" Switch to LEFT
    A- RX   control to  B-TX
    B- RX   control to  A-TX     mode 2
No Function DTMF PUSH PTT "##613" Switch to RIGHT
SLEEP  mode on  PUSH PTT DTMF"##28888"  No Function

SLEEP  mode off

PUSH PTT DTMF "##18888"  No Function




Surecom all model  Repeater controller function Compare

MODEL SR-112
SR-328
SR-628
SR-629
repeater-cable-m

Message recording

YES No Function

Accept Radio

1

Control of audio Transfer

Echo reply Real time reply

Radio  A- RX

  A- TX B-TX

Radio  B- RX

No  A-TX

Mode select function

No  YES

Two mode select

No  YES

 Control function by DTMF

YES  No

Input Audio Level
Led display

YES  No

Sleep mode

YES No

Build-Li-ion Battery

3.7V 900Mah  3.7V 600Mah

Battery LED: Charge/Full

RED / BLUE  RED /GREEN

LED Status :TX/RX

BLUE/RED  RED /BLUE  RED /GREEN

SIZE

110 x 80 x 25mm  70 x 90 x 25mm

Weight

113g  90g

DC INPUT

+ 5V-24V  + 5V

DC INPUT PLUG

5.5/2.1mm
(Center pole +)
Mirco USB

Set CH mode function on SR-112/SR-328/SR-628/SR-629

FUNCTION ECHO Power On Mode 1  Mode 2 Mode
Select
Sleep on  Sleep Off

SR-112
DTMF
## 71
Push Red
switch 2 sec
A-RX
A-TX
    DTMF
##28888
DTMF
##18888

SR-328
  Push Red
​switch 2 sec
A-RX
B-TX
    DTMF
##28888
DTMF
##18888

SR-628
  Push Red
​switch 2 sec
A-RX
B-TX
B-RX
A-TX


Mode 1+2
DTMF
 ##613



Mode 1
DTMF
##612

DTMF
##18888
DTMF
##18888
repeater-cable-m
SR-629
    Switch A-RX
B-TX
B-RX
A-TX

Mode 1+2
Switch
Right



Mode 1
Switch
Left






 Lightning Arrester :

Duplexer  20W / 35W / 50W

( Request High and Low frequency for Factory testing.
Please mark on paypal payment note )



 PCB for MOTOROLA GM300 Repeater Cable:

 Linear Power Amp:
SWITCH :

Splitter :



768 update 2018-02-19



Copyright © 2019 409shop,walkie-talkie,Handheld Transceiver All Rights Reserved.

Search keyword does not accept symbols . , " ; .../ !

409shop-facebook 409shop-you-tube 409shop-twitter.com instagram.com-409shop plus.google-409shop SKYPE-409shop
SURECOM new Product line how-to-choose-earpiece how-to-order-from-409shop
lexuma Shipping post All Categories ›
foot-home1 foot-walkietalkie foot--dmr foot-walkietalkie-commercial
world frs radio foot-mini-walkietalkie foot-walkietalkie-mobile fofoot-network-walkietalkie
409ptt foot-sdr foot-antenna foot-adaptor
foot-analyzer foot-antenna-monut foot-audio-adaptor foot-battery
foot-Battery-Case foot-batteryelimintor foot-beltclip foot-charger
foot-coax-antenna-cable foot-dummy-load foot-earpiece foot-power-supply
foot-programming cable foot-repeater repeater cable foot-spare-parts
foofoot-swr-meter foot-speaker foot-speaker-mMic foot-soft-case
SURECOM new Product line how-to-choose-earpiece   how-to-order-from-409shop



Why Choose 409shop.com?

    -Over 10,000 Radio products
    -Extremely low prices
    -Timely refunds and replacements
    -Worldwide free shipping (except F.O.B.)



Follow us on:

409shop-facebook 409shop-you-tube 409shop-twitter.com instagram.com-409shop plus.google-409shop SKYPE-409shop

Our Company

Learn & Support

Customer Service

Partner With Us

Home

Software Downloads

PAY Method

Reseller Contact

About Us

Technical Support MAP

Post Tracking

Supplier Contact

My Company

SHOPPING FAQ

Privacy Policy

Affiliate Program

News

Exchange/Refund
/Return
 Policy

Repair Return Address

寻求供应商

Authority of AllSit Map

Tax Policy

Contact Us

--




   409shop Group: SURECOM | DAXSHINE | 409shop-TWO-WAY-RADIO | 409shop-moibleHKTDC | 對講機香港代 409shopradio
   Quick buy: Buy Earpiece | Buy Speaker/Mic | Buy Antenna | Buy Adaptor | Buy UV5R 3800MAH battery | Buy SURECOM PRODUCT
   Friendly Links

walkie-talkie ,對講機牌照,DMR數碼對講機,cb對講機,motorola對講機香港 ,motorola數碼對講機,香港合法對講機,motorola對講機香港代理,motorola, t8對講機 ,motorola對講機耳機, 免費諮詢 , 409shop專業無線對講機生產
